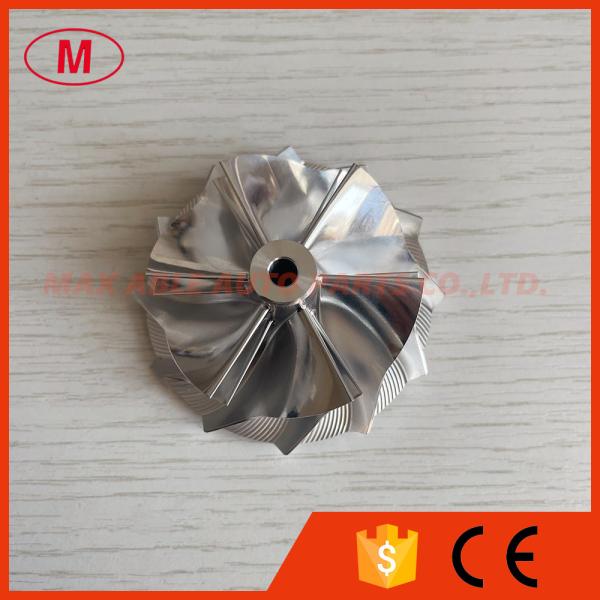

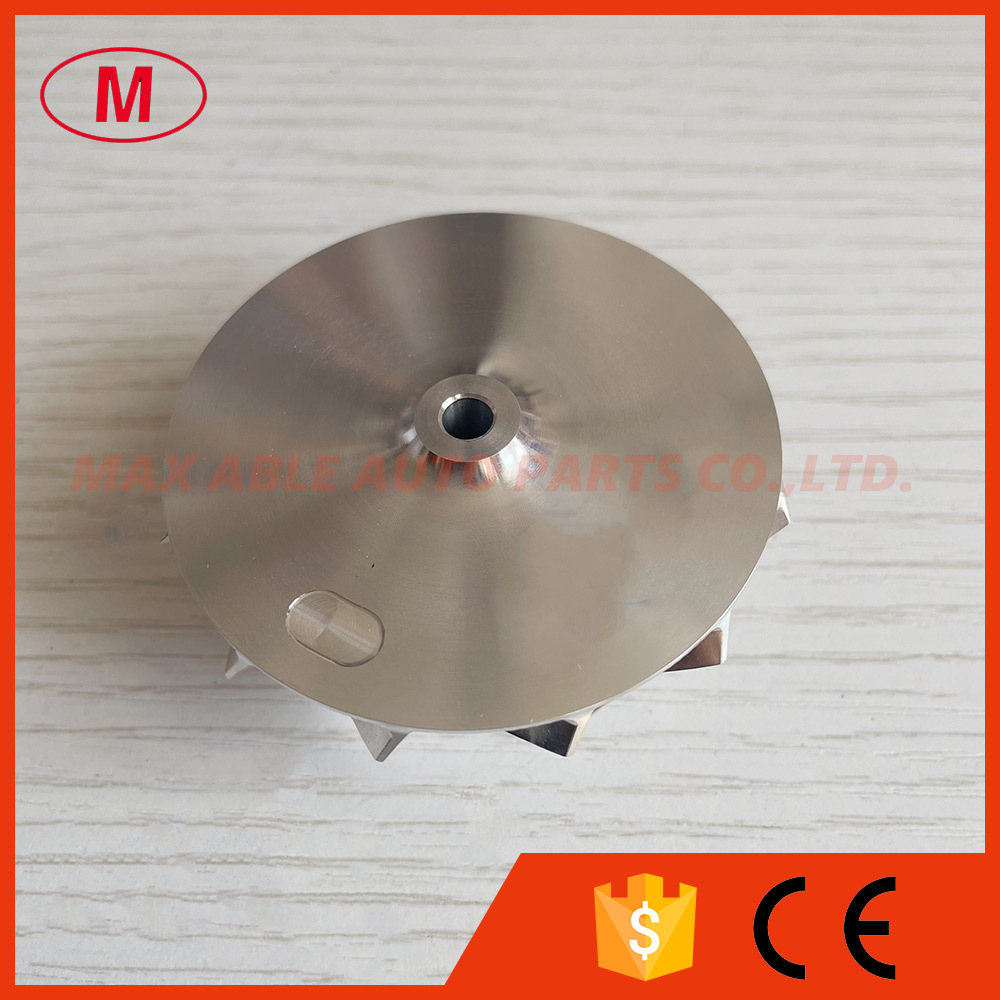

K04 reverse 46.39/56.08mm 6+6 blades high performance aluminum 2618/millining /billet compressor wheel for turbo

1.Model: K04 reverse

2.K04 reverse 46.39/56.08mm 6+6 blades high performance aluminum 2618/millining /billet compressor wheel for turbo

3.SIZE:

Nose diameter:10.90mm

inducer:46.39mm

Exducer:56.08mm

Tapered tip exducer:59.66mm

Tip height:4.68mm

Superback:2.60mm

Overall height:26.48mm

bore size :4.61mm

bore type:through

Trailing angle:60 degree

Cutback:0.0

Sp height angle:0.00

Blade height:20.05mm

Splitter height:14.50mm

6+6 blades

reverse rotation

Tapered tip angle:26 degree

It is custom size ,please check carefully before buying.

4.Good quality and competitive price

5.Please send email to me or talk to me on online ,if you want to know more details.

All the billet compressor wheel have been balanced.

We can do as your requirement.
