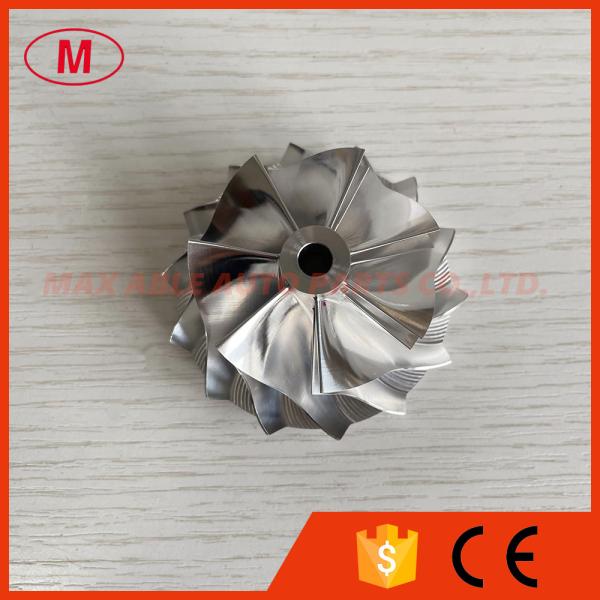

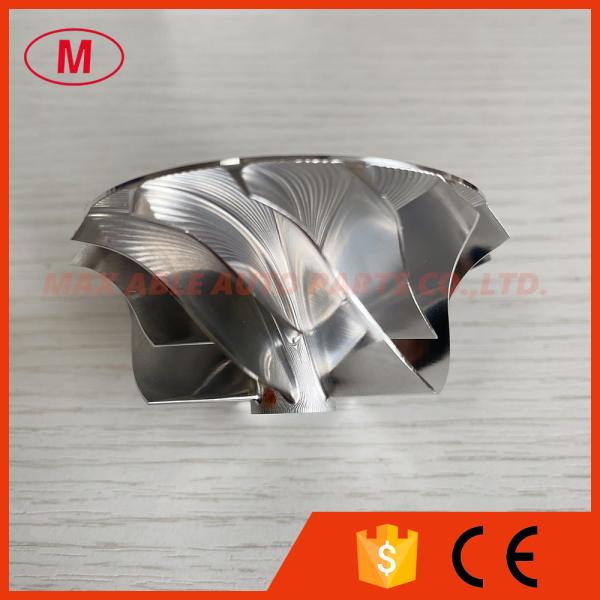

RHF5HB 46.50/59.94mm 7+7 blades Overall height:31.80mm high performance Turbocharger Billet compressor wheel for 07L145702J/ 07L145701J /VF30/VF34

Product Categories
Max Able Auto Parts Co.,Ltd.
Contact Now

RHF5HB 46.50/59.94mm 7+7 blades Overall height:31.80mm high performance Turbocharger Billet compressor wheel for 07L145702J/ 07L145701J /VF30/VF34

Model Number : RHF5HB

MOQ : 1PC

Payment Terms : TT ,western union ,paypal

Supply Ability : 1000

Delivery Time : 3-7 days

Packaging Details : neutral packing

Size : 46.50/59.94mm

Type : Turbochargers

Contact Now

1. MODEL:RHF5HB forward

2.RHF5HB 46.50/59.94mm 7+7 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel for 07L145702J/ 07L145701J /VF30/VF34/VF35/VF36/VF37/VF39/VF41/VF42/VF43/VF48/VF52
3.Size:
Nose diameter:12.57mm
Inducer:46.50mm
exducer:59.94mm
Tapered tip exducer:64.92mm
Tip height:5.32mm
Superback:3.71mm
Overall height:31.80mm
bore size :6.10mm
Bore type:through
Trailing Angle:60 degree
Cutback:0.0mm
Blades height:26.09mm
Splitter height:19.05mm
Sp Height angle:-4.50
7+7 blades
forward rotation
Tapered tip angle:30 degree
Fits OE Compressor Housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced.
